GPS/GNSS 1x16 Integrated Rack Mount Splitter (IRMS116)
GPS/GNSS 1x16 Integrated Rack Mount Splitter (IRMS116) single input, 16 output splitter amplifies and splits the GPS/GNSS signal from one GPS
receive antenna while granting up to 16 GPS/GNSS receivers signal access at any time. The most
common use being the input from an active GPS roof antenna or GPS simulator is split to sixteen
receiving GPS units or timing boards.
For Quotes or Ordering, call +91 80 7696 7694 or email sales@gpssource.co.in today for product pricing, available
options, questions, or technical support
Rack mounts are commonly used by cellular, timing, and test labs utilizing GPS. The IRMS116 is
available with more options than other competitive products.
A GNSS receiver within the IRMS116 monitors the antenna signal strength. There is also internal
monitoring of the antenna current draw.
The dual power supply option allows two internal power supply units to share the load. If one unit
is not available, the other will seamlessly take over without any loss of power. The power supply
LED fault indicator is clearly visible on the front panel, and can also transmit using the contacts
made available on the back panel.

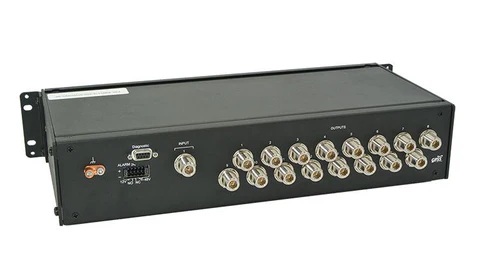

For diagnostic purposes, the IRMS116 also features a DB9 female connector interface on the back
panel.
- 16 GPS/GNSS Output Ports
- Single Antenna Input Port
- +/-48VDC Redundant Power Supplies
- Embedded Antenna Health Sensor
- Passes GPS L1/L2, GLONASS L1/L2, Galileo, Beidou
- Antenna Fault Indicator Light
- Power Fault Indicator Light
- Embedded Receiver to Monitor Signal
- Dual Power Option
- Standard 19 Inch Rack Mount Configuration
