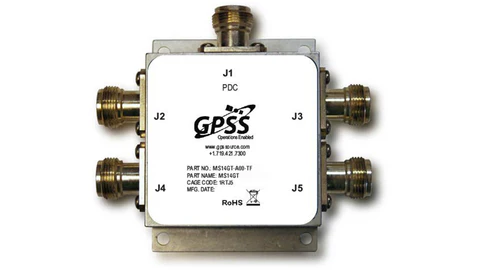

GPS/GNSS Splitter 1x4 (MS14GT) Military Qualified
GPS/GNSS Splitter 1x4 (MS14GT) Military Qualified that makes
it possible to use a single GPS referencing antenna to evenly distribute GPS/GNSS signals to up four
devices/receivers simultaneously. Designed for ruggedized applications, the MS14GT is qualified to a
wide range or MIL-STDs.
The MS14GT features an antenna DC bias select circuit. This allows for the active antenna DC input
from devices connected to any of the four outputs be applied to any or all RF outputs. With this
feature, one DC voltage will be chosen to power the antenna while others will be switched to DC
loads which will prevent any antenna alarm faults from connected devices. Designed for redundancy,
if the selected DC bias input should fail (or the device is disconnected), the DC bias will
automatically switch to another DC input to ensure an uninterrupted supply to the active antenna and
maintaining GPS lock at all of the other devices.
- Optimum signal quality with low noise and balanced gain
- Designed to support rugged, reliable, trouble-free deployment
- DC bias select automatically switches port if selected DC bias input fails
- MS14GT is standard configured with high isolation (does not require unused outputs to have 50 ohm terminations)
- Standard configurations includes N(f), SMA(f), and TNC(f) connectors
For Quotes or Ordering, call +91 80 7696 7694 or email sales@gpssource.co.in today for product pricing, available options, questions, or technical support
- Designed and manufactured to military specifications
- Includes EMI sealing, waterproofing, and hermetic sealing standard
- Delivers GPS, Galileo, GLONASS and BeiDou (all GNSS frequencies) to multiple devices and receivers
- Amplified to offset splitter losses while providing high isolation
- CE Certified, RoHS, REACH, UKCA Compliant
